4K HDMI2.0 KVM Fiber Extender ,4K60 4:4:4 image lossless transmission, compatible with 4K30, 1080P and 1920*1200 resolution;Support two-way infrared transmission, 3.5 interface;USB mouse and keyboard for remote control and management;Support RS232 two-way transmission and control (optional);
1.Product introduction
HDMI2.0 optical terminal machine developed and produced by Beijing Hcstcom supports optical fiber transmission of 80KM. The product supports point-to-point connection configuration, bi-directional infrared transmission, BI-directional RS232 data, and KVM function with USB interface. Remote control and management can be realized through USB mouse and keyboard. It is mainly used in outdoor advertising, video clips, remote surveillance systems, home theater entertainment, and remote conferences.
2. Product features
HDMI 2.0 standard compatible with HDMI V1.4 and 1.3a;
4K60 4:4:4 image lossless transmission, compatible with 4K30, 1080P and 1920*1200 resolution;
Support two-way infrared transmission, 3.5 interface;
USB mouse and keyboard for remote control and management;
Support RS232 two-way transmission and control (optional);
Products using the latest video lossless transmission technology, high reliability;
Single-mode optical fiber transmission 10-80km, multi-mode 0-2km;
Using CWDM technology, 16-channel HDMI2.0 single-fiber transmission can be realized.

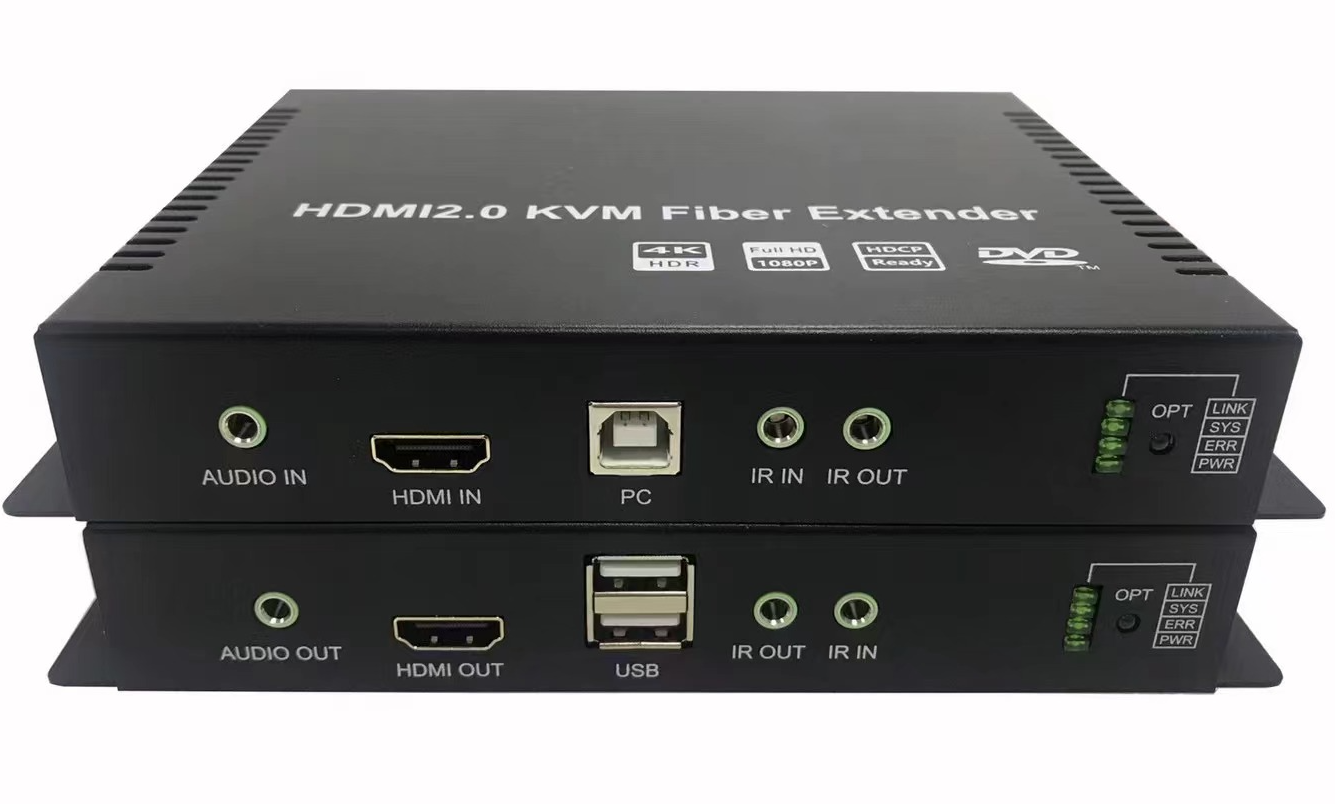

3. Product panel drawing
4. Technical parameters
|
Technical parameter |
Transmitter-TX |
Receiver-RX |
|
HDMI Version |
HDMI1.4 HDMI2.0, compatibility |
|
|
HDCP Version |
HDCP2.2, compatible HDCP1.4 |
|
|
Optical fiber interface |
SFP Optical interface(LC/PC) Wavelength of 1310 nm |
|
|
Transmission distance |
Single-mode 10-80km, multi-mode 0-2km |
|
|
Video resolution support |
1280x960、1280x800、1280x768、1680x1050、1360x768、1366x768、1600x900、1024x768、800x600, 3840*2160 60Hz、1920*1080P 25/30/60Hz |
|
|
Support for audio formats |
LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH |
|
|
HDR10（YUV4:4:4） |
support |
|
|
EDID passthrough |
support |
|
|
KVM function |
USB1.1Mouse、Keyboard |
|
|
Input TMDS signal |
0.7~1.2Vp-p |
|
|
InputDDC signal |
5Vp-p |
|
|
Input |
HDMI INx1，DC2.1×1, USB-A×1 3.5×1 |
DC2.1×1, RJ45×1, USB-A×2， 3.5×1 |
|
Output |
RJ45×1 3.5×1 |
HDMI OUT×1, 3.5×1 |
|
RS232 |
3 pin green terminals |
3 pin green terminals |
|
Infrared interface |
Bidirectional infrared, 3.5 interface |
Bidirectional infrared, 3.5 interface |
|
HDMI Interface |
Type A |
|
|
Mechanical parameters |
Transmitter-TX |
Receiver-RX |
|
Material |
Aluminum alloy |
|
|
Product size |
150.0(L) x 120(W) x 28(H)mm |
|
|
Net weight |
260g |
260g |
|
Power specification |
12V/1A |
12V/1A |
|
Power consumption |
5W |
5W |
|
Operating temperature |
-20～60℃ |
|
|
Storage temperature |
-30～70℃ |
|
|
Relative humidity |
0~ 90% (non-condensing) |
|
